Description

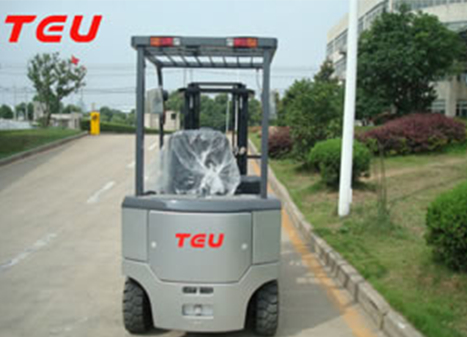

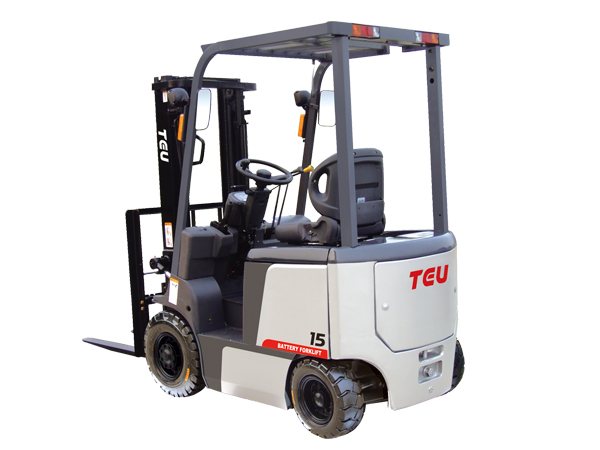

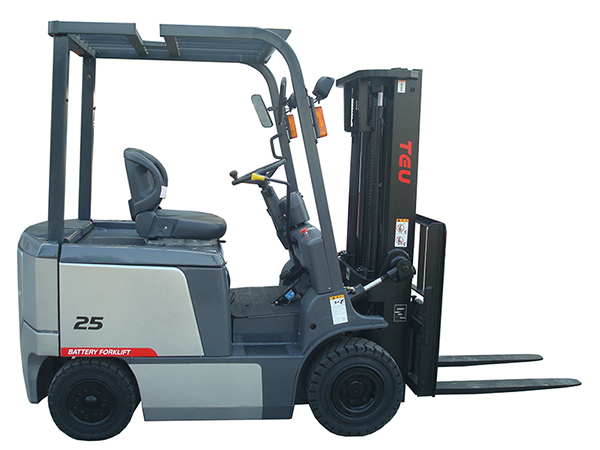

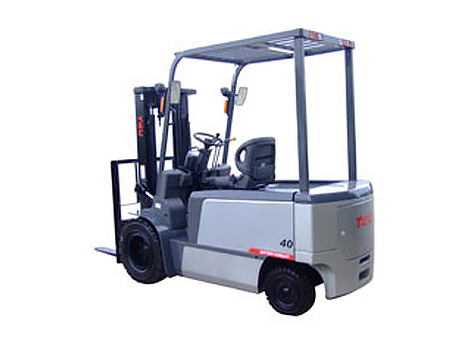

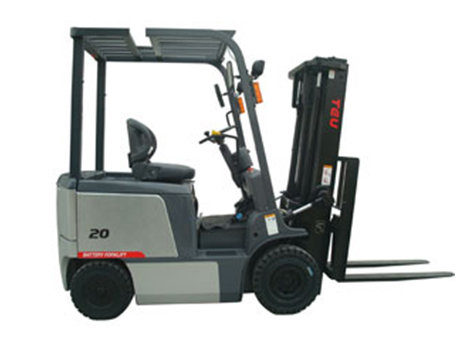

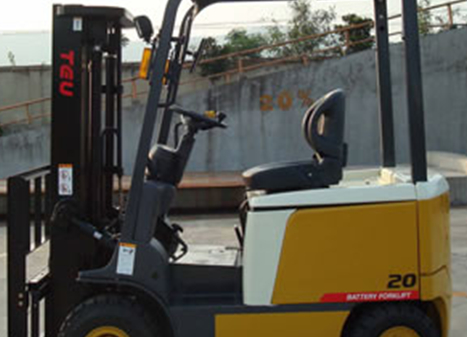

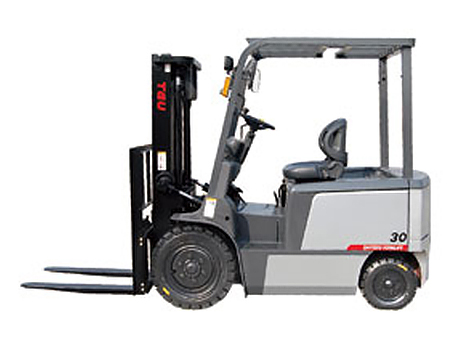

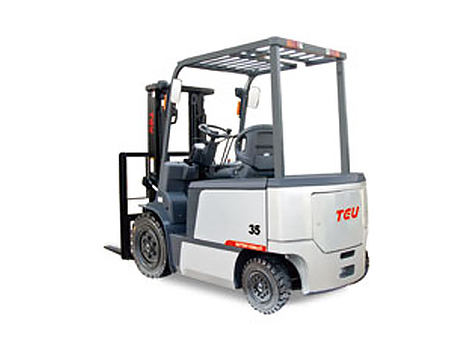

TEU can produce 1.5-4T electric forklift trucks for customers. The electric counterbalance forklift truck adopts storage battery to provide power. It is suitable for those areas that needs high requirements of environmental protection, such as indoor place and warehouse. This electric forklift is non-polluting and energy-saving. It adopts drive system with independent design, low noise and high efficiency. We also select imported motor and electric control units to ensure high reliability of hydraulic parts. Our company can also customize various electric forklift trucks according to customers' requirements. Lemon yellow or silver electric counterbalance forklift truck is optional for customers.

Applications
Electric forklift trucks are ideal material handing equipment for either indoor or outdoor applications. They can be widely used in workshops, warehouses and supermarkets for goods transferring. They are also ideal for using in food, clothing, knitwear and other woven products.

Performance
TEU electric counterbalance forklift truck has a compact body structure. It is easy and convenient to operate.
The width of new 1.5 ton forklift is narrower than standard cargo pallets (1100 mm). It can move vehicles freely in a very narrow working space. The customers' workshop space can be fully utilized.
Electric forklift truck owns compact body width (1070mm) and minimum turning radius (1780mm).

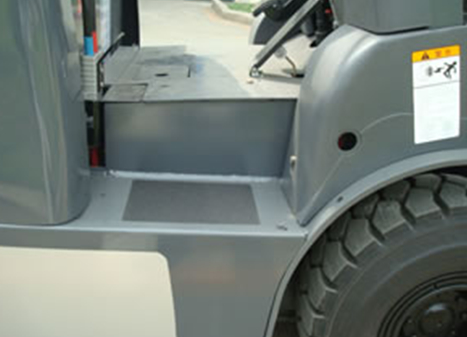

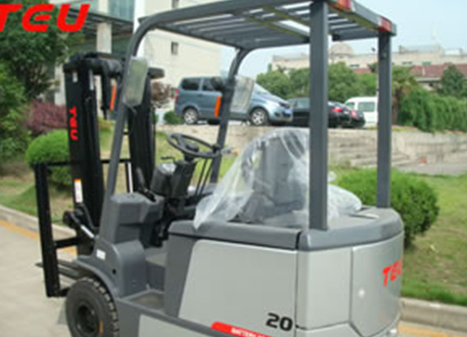

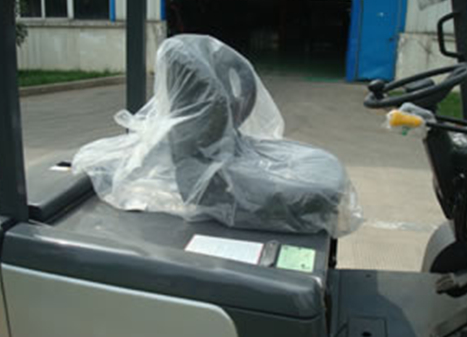

Our electric counterbalance forklift trucks are equipped with getting-on pedals and suspending seat, which can reduce operators' fatigue and make them feel comfortable.
We provide three operation modes. They can be converted to the most appropriate operation mode.
TEU electric forklift truck enjoys the advantage of low maintenance cost.

Main Parts

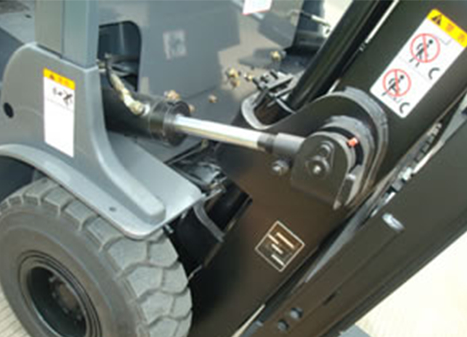

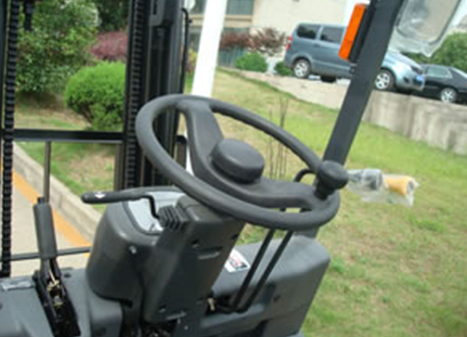

Electric counterbalance forklift truck mainly consists of power unit, transmission, steering device, working device, hydraulic system and brake device.

Packaging and Transportation
Shipping By Container.

SPECIFICATION	Item		FB15	FB20	FB25	FB30	FB35	FB40
	Load capacity	kg	1500	2000	2500	3000	3500	4000
	Load center	mm	500	500	500	500	500	500
DIMENSIONS	Max. lifting height(VM300)	mm	3000	3000	3000	3000	3000	3000
	Turning raduis(outside)	mm	1780	1980	2000	2140	2200	2450
	Overall length(without fork)	mm	1955	2245	2285	2510	2560	2810
	Total width	mm	1070	1150	1150	1225	1225	1390
	Mast height (fork lowering)	mm	1995	1995	1995	2075	2075	2150
	Height to head guard	mm	2100	2145	2145	2190	2190	2425
	Fork size (L×W×T)	mm	920*100*35	1070*122*40		1070*125*45	1070*122*50	1070*150*50
	Tilt range(forward/backward)	deg	6/12	6/12	6/12	6/12	6/12	6/12
	Truck weight(with standard battery)	kg	2690	3440	3820	4660	4960	5260
TIRES	front/rear		2/2	2/2	2/2	2/2	2/2	2/2
	front axle		6.00-9-10-10PR	21*8-9-16PR		28*9-15-12PR	28*9-15-14PR	250-15-16PR
	rear axle		16*6-8-10PR	18*7-8-14PR		18*7-8-14PR	18*7-8	18×7-8
DRIVE LINE	Battery	V/AH	48/400	48/450	48/565	72/480	72V-560	80V-550
	Drive motor	kw/60min	8	8	8	11	11	11
	Hydraulic motor	kw/5min	8.2	8.6	8.6	10	10	13
	Control type		Driving AC control type , lifting DC control type
