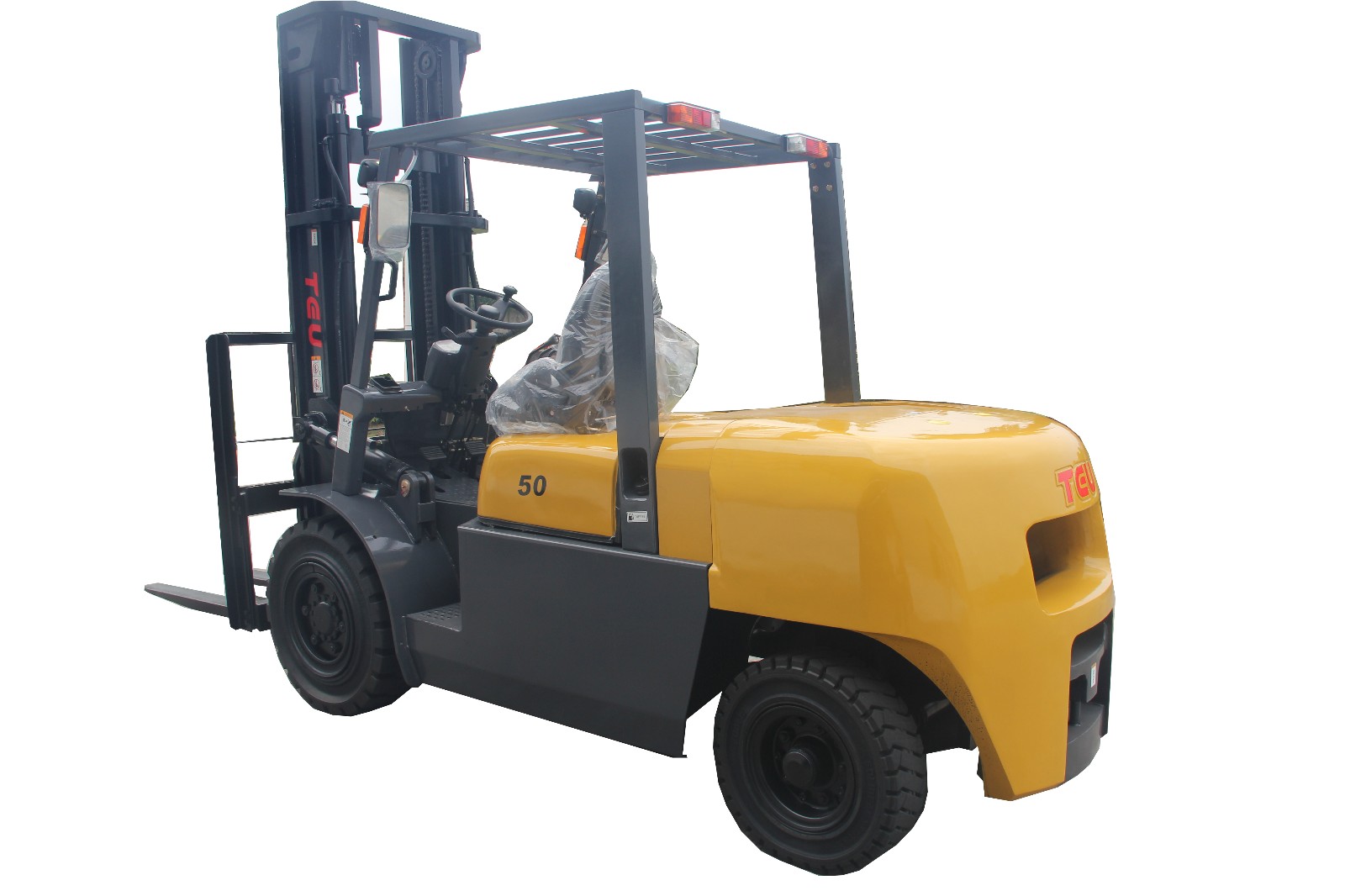

4.5-5.0t Diesel Forklift Truck
- Description
- Specifications
Description
4.5-5.0T diesel forklift truck include FD45T,FD50TS and FD50TF models. With good stability, this diesel counterbalance truck is quite suitable for loading heavy cargoes. It can be used at any time and applied in outdoors. Compared to gasoline engine, diesel engine possesses better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity. Besides, TEU can provide different sizes of diesel forklift trucks according to customers' needs.
Main Components of 4.5-5.0T Diesel Forklift Truck
Optional Engines
FD45T,FD50TS,FD50TF: Chinese 4108，Mitsubishi S6S
Packaging and Transportation
Shipping By Container.
4.5-5.0T diesel forklift truck include FD45T,FD50TS and FD50TF models. With good stability, this diesel counterbalance truck is quite suitable for loading heavy cargoes. It can be used at any time and applied in outdoors. Compared to gasoline engine, diesel engine possesses better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity. Besides, TEU can provide different sizes of diesel forklift trucks according to customers' needs.
Main Components of 4.5-5.0T Diesel Forklift Truck
| Engine | It is the power unit of the forklift truck, which converts heat energy into mechanical energy. |
| Transmission Gear | It includes clutch, transmission, main transmission, differential mechanism, axle shaft, etc. |
| Operating Control | It consists of steering mechanism and brake system. |
| Working Device | It includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes. |
| Hydraulic System | It includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. It can realize lifting and tilting of cargoes. |
| Electric System | It consists of power section and the electric part, such as storage battery, alternator, starter motor, ignition device, illumination device and loudspeaker. |
FD45T,FD50TS,FD50TF: Chinese 4108，Mitsubishi S6S
Packaging and Transportation
Shipping By Container.
| SPECIFICATION | Item | FD45T | FD50TS | FD50TF | |
| Load capacity | kg | 4500 | 5000 | 5000 | |
| Load center | mm | 600 | 500 | 600 | |
| DIMENSIONS | Max. lifting | mm | 3000 | 3000 | 3000 |
| Free lift | mm | 140 | 140 | 140 | |
| Fork size | mm | 1220*150*50 | 1070*150*50 | 1220*150*60 | |
| Overall length(without fork) | mm | 3100 | 3100 | 3183 | |
| Total | mm | 1485 | 1485 | 1485 | |
| Mast (fork lowering) | mm | 2300 | 2300 | 2390 | |
| Overall fork raised | mm | 4190 | 4190 | 4295 | |
| to head guard | mm | 2270 | 2270 | 2270 | |
| Truck weight | kg | 7230 | 7230 | 7830 | |
| TIRES | front/rear | 2/2 | |||
| front axle | 300-15-18PR | 300-15-18PR | 300-15-18PR | ||
| rear axle | 7.00-12-12PR | 7.00-12-12PR | 7.00-12-12PR | ||
| ENGINE | Model | Mitsubishi S6S | Chinese 4108 | Mitsubishi S6S | |
| Rated power | kw/rpm | 52/2300 | 57/2200 | 52/2300 | |
| Rated torque | Nm/rpm | 248/1700 | 297/1600 | 248/1700 | |
| Number of cylinders | 6 | 4 | 6 | ||
| Dislacement | L | 4.996 | 4.578 | 4.996 | |
