Description

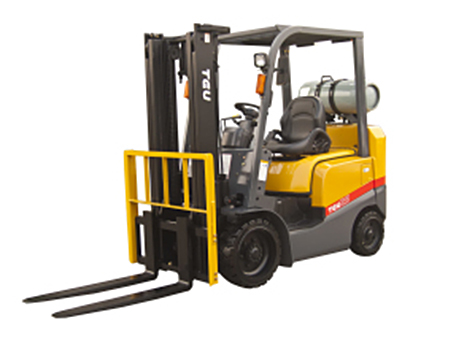

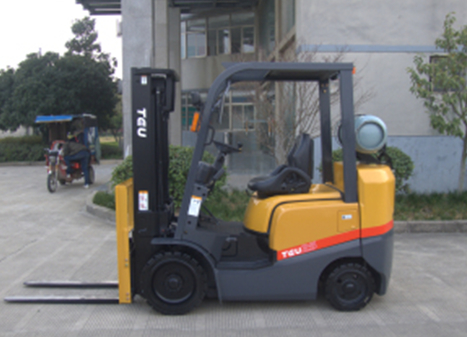

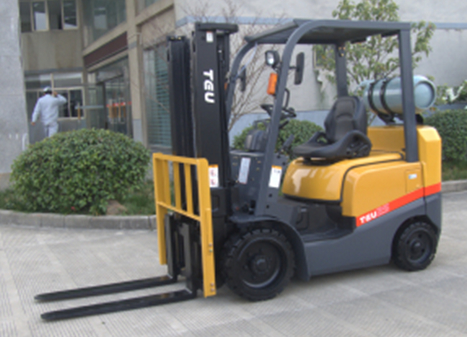

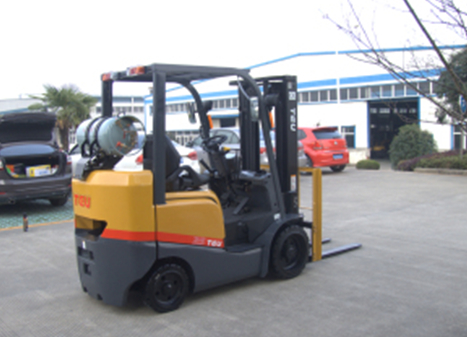

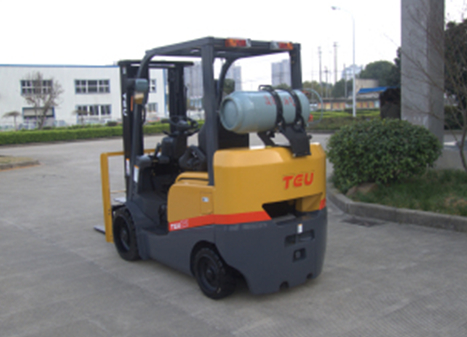

With 2.0 to 2.5 ton weight, smaller structure and more flexible operation, Cushion tires forklift is well-suited to apply to confined space.

Advantages
1. Flexible operation.
Compared with the same type of truck lift, the length, wheelbase and turning radius of this Cushion tires forklift has reduced by 220mm (2.5T), 200mm and 210mm (2.5T), making it more flexible to operate and more suited to be applied in confined space.

2. Fewer emission.
K21 engine, gasoline and liquefied gas mixed fuel as well as ternary catalytic silencer and microcomputer closed-loop control system are available for this Cushion tires forklift to minimize emissions and satisfy air circulation requirements of confined space.

3. Humanized operating system.
The operating system, designed in accordance with principles of ergonomics, allows easier operation of the operator. The cylinder bracket that is easy to assemble and disassemble facilitates working.

Maintenance of Lift Truck
1. Daily maintenance is necessary after each shift of work.
2. Level 1 technical maintenance after 100 accumulated working hours, approximately every 2 weeks.

3. Level 2 technical maintenance after 500 accumulated working hours, approximately every quarter.

Components of Forklift
1. Engine: power of this Cushion tires forklift. It converts thermal energy into mechanical energy.
2. Transmission mechanism: includes the clutch, the transmission, main transmission device, differential mechanism and half shaft, etc.
3. Control mechanism: consists of the steering system and the braking system.
4. Working mechanism: includes inside and outside mast, fork frame, cargo fork, lifting chain, roller, pulley, etc. It’s mainly utilized to lift and lower, get or stack cargos.
5. Hydraulic system: consists of the fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder, tilted hydraulic cylinder. It’s applied to lift and lower as well as tilt cargos.
6. Electrical system: includes the power source part and the power usage part. It consists of storage battery, generator, starter motor, ignition system, lighting system, speaker, etc.

Operating Instructions
1. Only drivers with appropriate training and holding driver license can drive the lift truck.
2. Check the control and alarming mechanism, and any damage or defect shall be repaired before driving.
3. Cargoes lifted shall not exceed the specified load. The cargo fork shall entirely get in the cargo. Put the cargo evenly on the fork, and using a single fork to get the cargo is not allowed.
4. Smoothly start this Cushion tires forklift, turn the direction, brake and stop the lift truck. Slow down when driving on wet or slippery road or turning direction.

Packaging and Transportation
Maritime shipping in containers

Others
1. Low vibration and noise ---to satisfy the needs of people and their living environment.
2. Low fuel consumption---Hourly fuel consumption will not exceed 6 liters under high working intensity.

Optional Engine
FCG20,FCG25: NISSAN K21

SPECIFICATION	Item		FCG20			FCG25
	Load Capacity	kg	2000			2500
	Load Center	mm	500
DIMENSIONS	Max. Lifting (VM300)	mm	4800
	Free Lift (VM300)	mm	1116
	Fork Size (L × W × T)	mm	1070 × 122 × 40
	Overall Length (without fork)	mm	2258		2310
	Total	mm	1150
	Mast (fork lowering)	mm	2156
	Overall Fork Raised	mm	5830
	to Head Guard	mm	2120
	Truck Weight	kg	3445	3795
TIRES	Front / Rear		2/2
	Front Axle		21× 8 × 15
	Rear Axle		16.25 × 6 × 11.25
ENGINE	Model		NISSAN K21
	Rated Power	kw/rpm	31.2 / 2250
	Rated Torque	Nm/rpm	144 / 1600
	Number of Cylinders		4
	Dislacement	L	2.065
