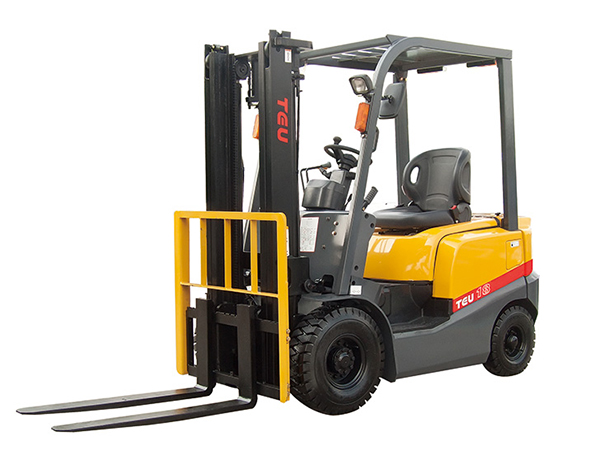

EFFO Series Forklift (1.5-4.0t)
- Description
- Specifications
Description
TEU EFFO series forklift truck mainly includes 1.5-4.0T diesel forklift and 1.5-4.0T gasoline forklift. Diesel forklifts have powerful overload capacity and long time working ability. The gasoline type features small dimension, light weight, high output power, low noise, small vibration and low price. They are both used in the outdoors.
Attentions
The customers should fully know the working environment, the maximum load and the maximum lifting height of the forklift truck, and then choose the appropriate model and configurations.
Packaging and Transportation
shipping by container
TEU EFFO series forklift truck mainly includes 1.5-4.0T diesel forklift and 1.5-4.0T gasoline forklift. Diesel forklifts have powerful overload capacity and long time working ability. The gasoline type features small dimension, light weight, high output power, low noise, small vibration and low price. They are both used in the outdoors.
Attentions
The customers should fully know the working environment, the maximum load and the maximum lifting height of the forklift truck, and then choose the appropriate model and configurations.
Packaging and Transportation
shipping by container
| SPECIFICATION | Item | FD15T | FD18T | FD20T | FD25T | FD30T/C | FD35T/C | FD40T/C | |
| Load capacity | kg | 1500 | 1750 | 2000 | 2500 | 3000 | 3500 | 4000 | |
| Load center | mm | 500 | 500 | 500 | |||||
| DIMENSIONS | Max. lifting (VM300) | mm | 3000 | 3000 | 3000 | ||||
| Free lift (VM300) | mm | 155 | 160 | 150 | |||||
| Fork size | mm | 920*100*35 | 1070*122*40 | 1070*125*45 | 1070*125*50 | 1070*150*50 | |||
| Overall length(without fork) | mm | 2245 | 2275 | 2460 | 2530 | 2705 | 2760 | 2870 | |
| Total | mm | 1070 | 1150 | 1225 | 1285 | 1365 | |||
| Mast (fork lowering) | mm | 1995 | 1995 | 2075 | 2150 | ||||
| Overall fork raised | mm | 4045 | 4030 | 4250 | |||||
| to head guard | mm | 2060 | 2120 | 2140 | |||||
| Truck weight | kg | 2550 | 2780 | 3330 | 3670 | 4380 | 4780 | 5050 | |
| TIRES | front/rear | 2/2 | |||||||
| front axle | 6.50-10-10PR | 7.00-12-12PR | 28*9-15-12PR | 250-15-16PR | |||||
| rear axle | 5.00-8-10PR | 6.00-9-10PR | 6.50-10-10PR | ||||||
| ENGINE | Model | ISUZU C240 | Chinese A490 | ISUZU C240 | Chinese CA498 | MITSUBISHI S4S | ISUZU C240 | ISUZU 4JG2 | |
| Rated power | kw/rpm | 34.3/2500 | 37/2650 | 34.3/2500 | 42/2450 | 35.4/2250 | 34.3/2500 | 44.8/2450 | |
| Rated torque | Nm/rpm | 138/1800 | 148/1800 | 138/1800 | 190/1800 | 170/1700 | 138/1800 | 186/1800 | |
| Number of cylinders | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| Dislacement | L | 2.369 | 2.54 | 2.369 | 3.168 | 3.059 | 2.369 | 3.059 | |
