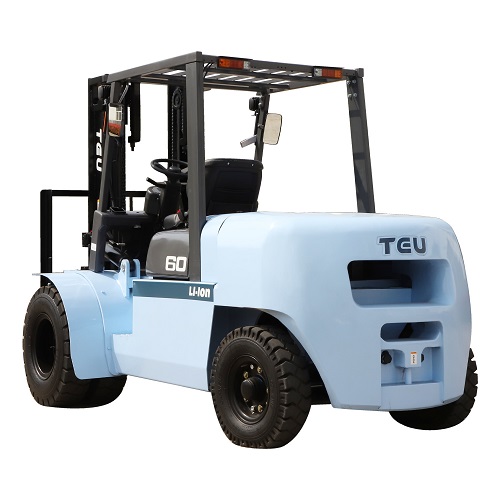

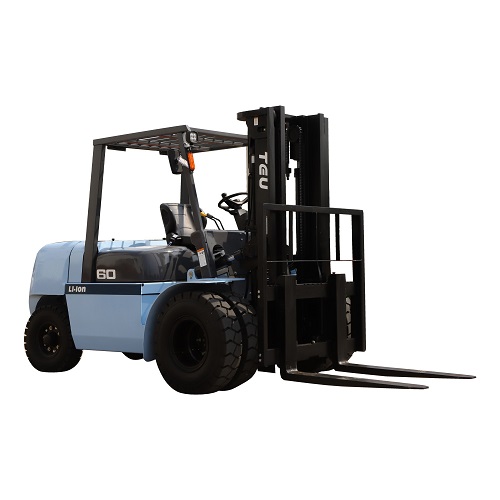

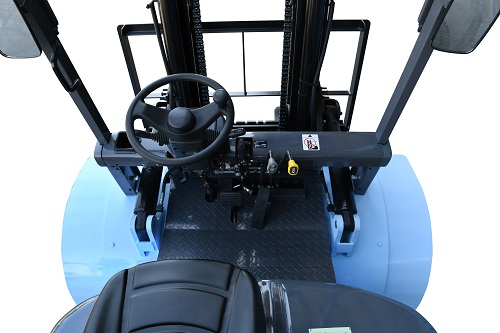

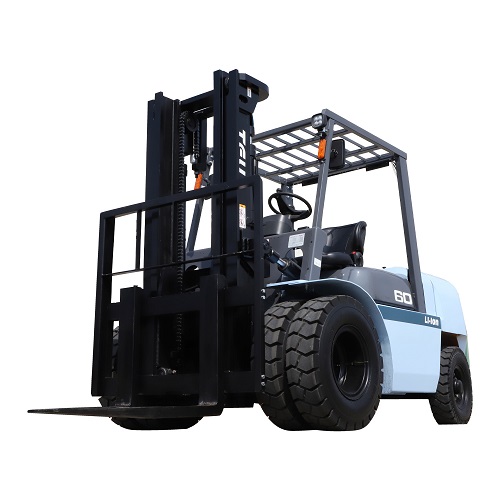

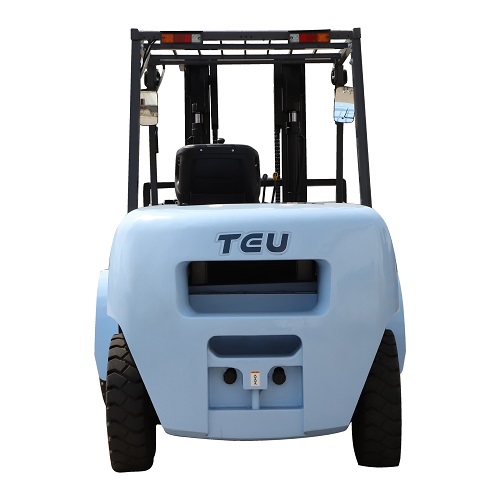

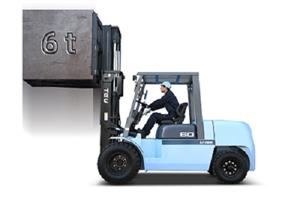

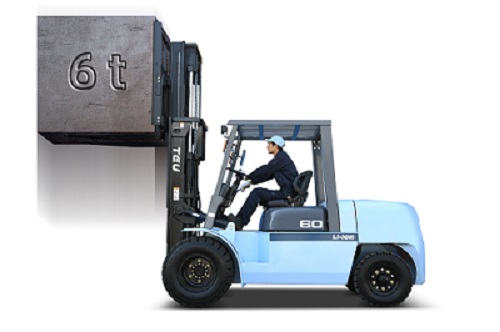

Lithium Battery Forklift(4.5 - 6t)
- Description
- Specifications
TEU can produce FLB45-60 electric forklift trucks for customers. The electric forklift Powered by storage battery, the electric forklift truck is suitable for areas that have high requirements on environmental protection, such as indoor place and warehouses. This forklift truck is non-polluting and energy-saving. It adopts drive system with independent design, low noise and high efficiency. This electric truck is also equipped with imported motor and electric control units to ensure high reliability of its hydraulic parts. Our company can also customize various electric forklift trucks according to customers' requirements.
| SPECIFICATION | 1 | Manufacturer | TEU | ||||||
| 2 | Model | FLB45 | FLB50S | FLB50 | FLB60 | ||||
| 3 | Max.lift capacity | kg | 4500 | 5000 | 5000 | 6000 | |||
| 4 | Load center | mm | 600 | 500 | 600 | 600 | |||
| 5 | Free lift | mm | 140 | 140 | 140 | 140 | |||
| 6 | Total length without fork | mm | 3183 | 3183 | 3213 | 3422 | |||
| 7 | Total width | mm | 1485 | 1485 | 1485 | 1970 | |||
| 8 | Mast height (fork lowered) | mm | 2300 | 2300 | 2360 | 2360 | |||
| 9 | Overall height fork raised | with backrest | mm | 4143 | 4143 | 4420 | 4420 | ||
| 10 | Height of head guard | mm | 2270 | 2270 | 2270 | 2270 | |||
| 11 | Turning raduis (outside) | mm | 2860 | 2860 | 2860 | 3100 | |||
