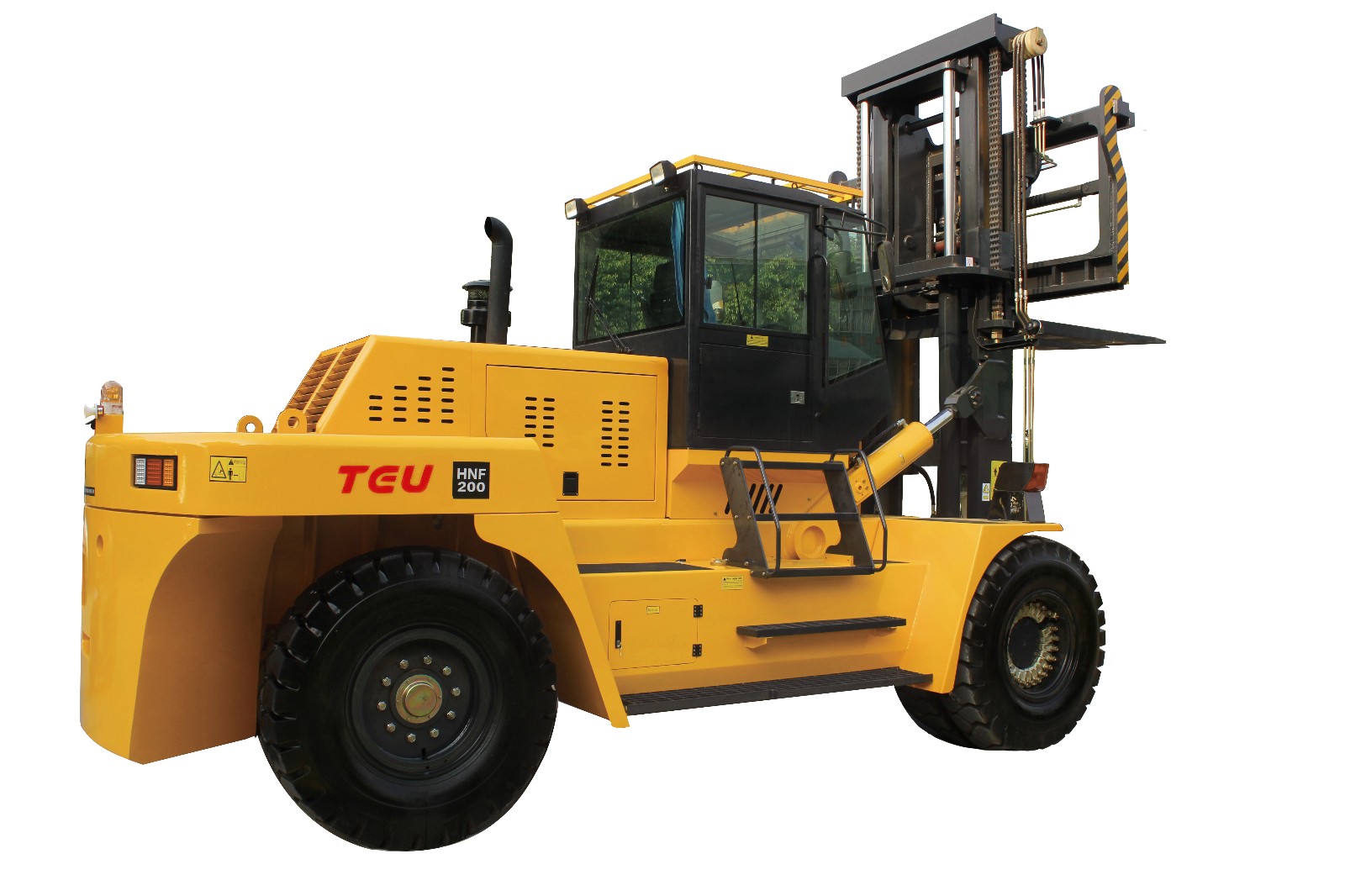

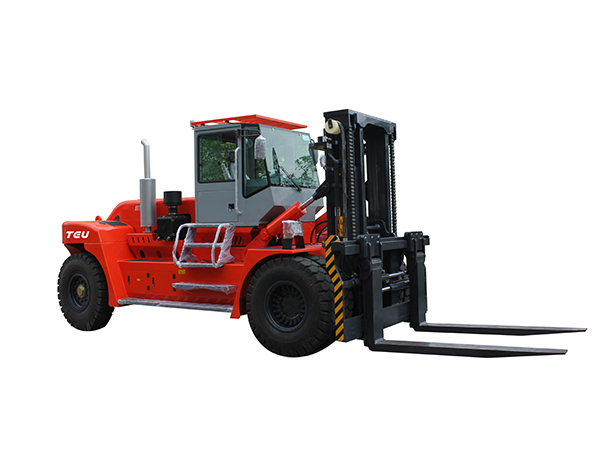

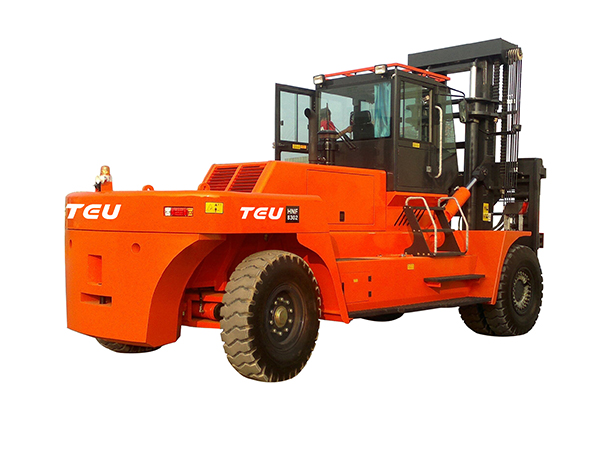

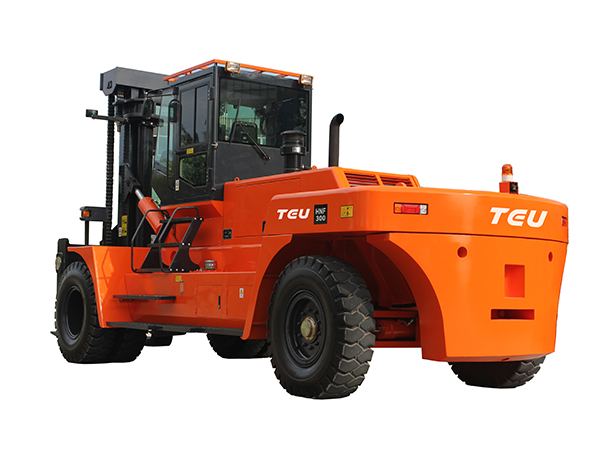

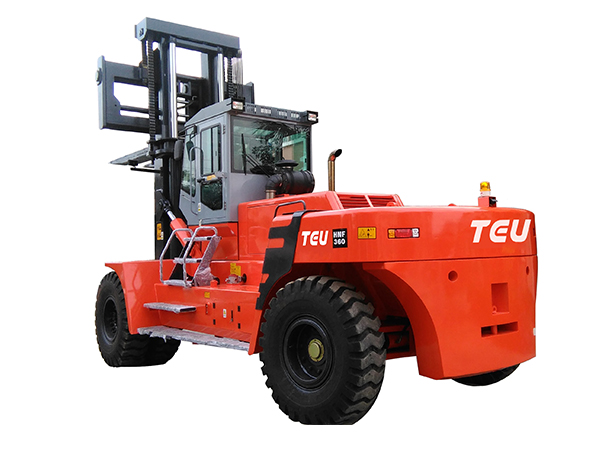

Heavy Duty Diesel Forklift Truck(16-36t)
- Description
- Specifications
Description
TEU EFFO series forklift truck mainly includes 16-36T diesel forklift and 16-36T gasoline forklift. Diesel forklifts have powerful overload capacity and long time working ability. The gasoline type features small dimension, light weight, high output power, low noise, small vibration and low price. They are both used in the outdoors.
Attentions
The customers should fully know the working environment, the maximum load and the maximum lifting height of the forklift truck, and then choose the appropriate model and configurations.
Packaging and Transportation
shipping by container
TEU EFFO series forklift truck mainly includes 16-36T diesel forklift and 16-36T gasoline forklift. Diesel forklifts have powerful overload capacity and long time working ability. The gasoline type features small dimension, light weight, high output power, low noise, small vibration and low price. They are both used in the outdoors.
Attentions
The customers should fully know the working environment, the maximum load and the maximum lifting height of the forklift truck, and then choose the appropriate model and configurations.
Packaging and Transportation
shipping by container
| Performance | Rated load | 20000 | 25000 | 30000 | 32000 | 36000 | |||
| Load center | 900 | 1250 | 1250 | 1250 | 2500 | ||||
| Free lift | mm | 180 | 1850 | 180 | 180 | ||||
| Mast tilt angle (front/rear) | º | 6/12 | 6/12 | 6 / 12 | 6/12 | 6/12 | |||
| Overall dimensions | Length | mm | 8340 | 9190 | 9640 | 9590 | 9700 | ||
| mm | 3050 | 3050 | 3200 | 3200 | 3320 | ||||
| mm | 3510 | 3510 | 4000/5000/5250 | 4950 | 4310 | ||||
| Mast lifting | mm | 3500 | 3500 | 3500/5500/6000 | 5500 | 3500 | |||

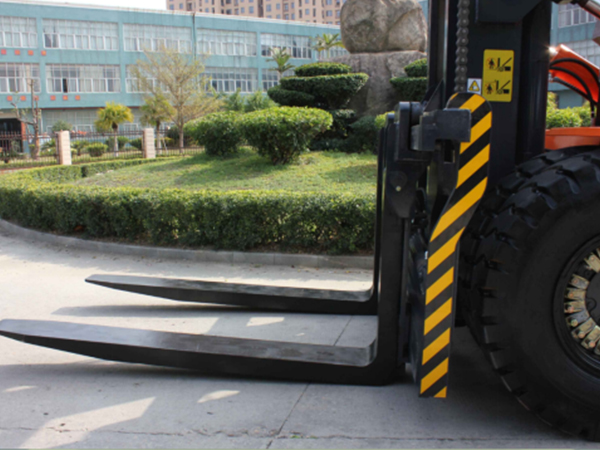

| Fork size (L × W × H) | mm | 2400 × 260 × 100 | 2440 × 300 × 110 | 2440 × 320 × 110 | 2440 × 320 × 110 | ||||
| Min. turning radius | mm | 6250 | 6700 | 6800 | 7260 | 7260 | |||
| Max. travel speed (with load) | km/h | 28 | 28 | 28 | 28 | 28 | |||
| Lifting speed (with load) | mm/s | 260 | 260 | 260 | 260 | 260 | |||
| Gradeability (with load) | % | 20 | 20 | 20 | 20 | 20 | |||
| Weight | kg | 32000 | 35000 | 40000 | 43500 | 45000 | |||

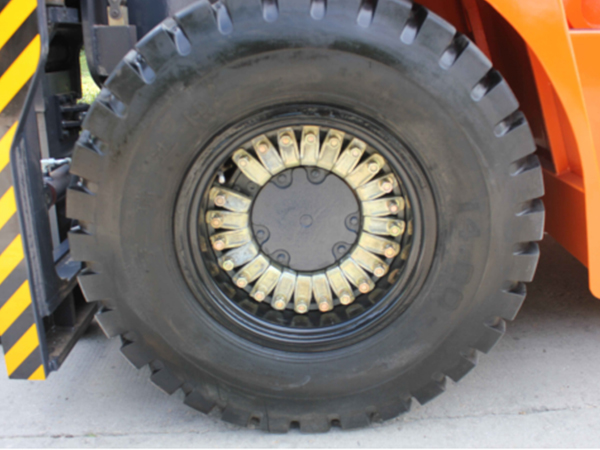

| Tyre | Front | 4 × 14.00-24/24PR | 4 × 14.00-24/28PR | 4 × 14.00-24/28PR | 4 × 14.00-24/32PR | 4 × 16.00-25/32PR | |||
| Rear | 2 × 14.00-24/24PR | 2 × 14.00-24/28PR | 2 × 14.00-24/28PR | 2 × 14.00-24/32PR | 2 × 16.00-25/32PR | ||||
| Wheel tread | Front | mm | 2200 | 2200 | 2490 | 2490 | 2810 | ||
| Rear | mm | 2390 | 2390 | 2450 | 2450 | 2450 | |||
| Wheelbase | mm | 4000 | 4400 | 4800 | 4800 | 4800 | |||
| Min. ground clearance | mm | 250 | 250 | 350 | 350 | 350 | |||
| Engine | Model | WP10G220E343 | WP10G220E343 | WP10G220E343 | WO10G240E341 | WD10G240E21 | |||
| Rated power / rotate speed | kW/r.pm | 162/2000 | 162/2000 | 178/2200 | 178/2200 | 175/2200 | |||
| Max. torque / rotate speed | N.m/r.pm | 908/1500 | 980/1500 | 1052/1500 | 1000 /1600 | 1000/1600 | |||
