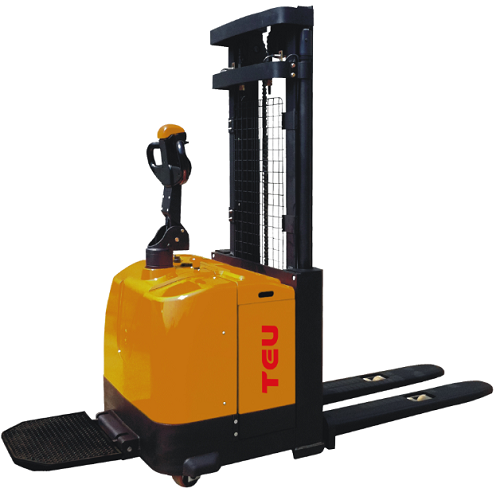

TS16GA Electric Pallet Stacker
- Description
- Specifications
| Feature | Unit | TEU | ||
| Model | TS16GA | TS16GA | TS16GA | |
| Configuration No. | D920 | 960 | 360 | |
| Type |
Wide legs |
Wide legs |
Wide legs |
|
| Mast type |
2-Stage STD |
Full free 3-Stage |
Full free 3-Stage |
|
| Load capacity | kg | 1600 | 1600 | 1600 |
| Load center | mm | 600 | 600 | 600 |
| Wheel base | mm | 1310 | 1375 | 1375 |
| Operating type | Walkie / Stand On | Walkie / Stand On | Walkie / Stand On | |
| Wheels | ||||
| Wheels type | PU | PU | PU | |
| Dimension | ||||
|
Standard lift |
mm | 3000 | 4500 | 5300 |
|
Overall length |
mm | 2005/2425 | 2073/2493 | 2073/2493 |
| Overall | mm | 1470 | 1470 | 1470 |
| Weight | ||||
| Battery weight | kg | 235 | 235 | 235 |
|
Service weight with battery |
kg | 1370 | 1648 | 1680 |
